P150-100
Maintains the visual appearance of P150/75 whilst being able to sustain concentrated loadings of up to 75KN – UDL (Ultimate Design Load). Contains 100 x 100mm glass lenses set into reinforced concrete ribs which are spaced at 150mm centres with an overall panel thickness of 100mm. Weight 171 Kg/m².
- Choice of concrete colours and top surface textures.
- Glass lens sandblasted finishes available.
- Soffit finish- as cast/ ex mould. Rib profile – square draw.
- Pre-cast or in situ constructed options.

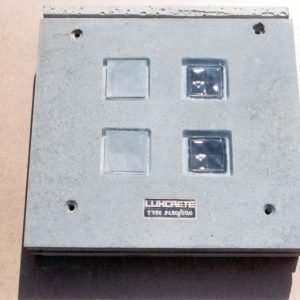

P150-100 Sample Panel
Clear
